Blue OX Model OX3200-2x3

OX3200 Unit

Other Views

No Additional Images

Unit

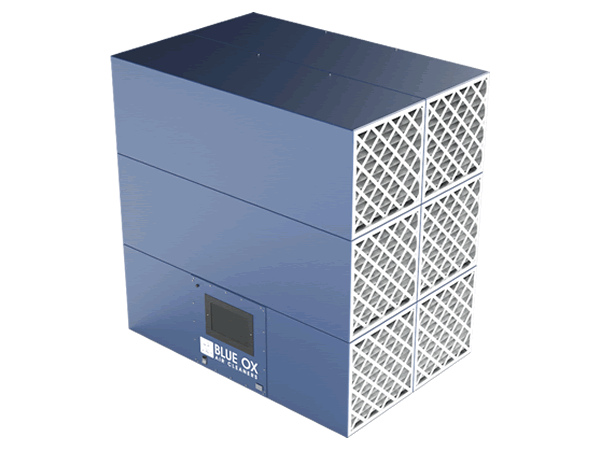

Blue Ox Model OX3200-2x3
3,200 CFM Media Filtration System w/ 2x3 Configuration, 2 Deep x 3 High

Color: Blue

Installation Options View Our Mounting Guide

parts
52" Hanging Brackets for OX3200, OX4000, OX4500, OX7200
SKU: BOP-STRUT52
Self Installation

Unit Options


parts
Filter Change Gauge: Magnehelic Pressure Gauge 0-2" W.C.
SKU: BOP-MAG02
qty:

parts
6-8 Decibel Silencer
w\ 4-way Directional Louver
SKU: BOP-2530SIL
qty:

parts
10-12 Decibel Silencer
w\ Non-Directional Grill
SKU: BOP-2530SIL-WG
qty:

Replacement Filters (unit comes with one set of filters)

Replacement Filters

Description Price Quantity
24" x 24" x 4" Aluminum Mesh Pre-Filter (Oil)
(Sold Individually)
SKU: BOF-4404-AM
$ 162.50 ea. Filters
Pleated Pre-Filters MERV 10
24" x 24" x 4"
(Priced Individually; Sold in Cartons of 6)
SKU: BOF-4404
$ 12.70 ea. Filters
65% Bag Filters
24" x 24" x 22" (8-Pocket)
(Priced Individually; Sold in Cartons of 4)
SKU: BOF-442268
$ 67.42 ea. Filters
95% Bag Filter
24" x 24" x 22" (8-Pocket)
(Priced Individually; Sold in Cartons of 4)
SKU: BOF-442298
$ 81.51 ea. Filters

Installation Kits

Description Price Quantity
52" Hanging Brackets for OX3200, OX4000, OX4500, OX7200 $ 168.00

Accessories

Description Price Quantity
Filter Change Gauge: Magnehelic Pressure Gauge 0-2" W.C.
SKU: BOP-MAG02
$ 147.00
Silencer Retro Kit with larger louver - field install
SKU: BOP-2530SIL-RK
$ 339.00

Replacement Filters

Description Price Quantity
24" x 24" x 4" Aluminum Mesh Pre-Filter (Oil)
(Sold Individually)
SKU: BOF-4404-AM
$ 162.50 ea. Filters
Pleated Pre-Filters MERV 10
24" x 24" x 4"
(Priced Individually; Sold in Cartons of 6)
SKU: BOF-4404
$ 12.70 ea. Filters
65% Bag Filters
24" x 24" x 22" (8-Pocket)
(Priced Individually; Sold in Cartons of 4)
SKU: BOF-442268
$ 67.42 ea. Filters
95% Bag Filter
24" x 24" x 22" (8-Pocket)
(Priced Individually; Sold in Cartons of 4)
SKU: BOF-442298
$ 81.51 ea. Filters

Technical Documents

PDF Icon OX3200-2x3 Cut Sheet
PDF Icon OX3200 Accessories
PDF Icon OX3200 Owner's Manual
PDF Icon Blue OX Mounting Guide

Unit Specifications

  • CFM: 3,200
  • Airflow: T Pattern Airflow Unit - Inlet on both ends, exhaust from center
  • Sound Level: 62db (on-high)
  • Cabinet: 72"W x 48"T x 72"L
  • Wiring: 3 Prong Power Cord 10 feet with Two Speed Switch Easy set up — "Plug and Play"
  • Hang Weight: 650 lbs.
  • Filters Included:
    (12) 24" x 24" x 4" Pleated Fiber Pre-filter
    (12) 24" x 24" x 22" 65% 8 Pocket Bag Filter
  • Warranty: 3 Years on all parts (not filters)

Technical Specifications

  • Grille / Louver: 4-Way individually adjustable blades/fins
  • Finish: Chemical Resistant Powder Coating
  • Motor: PSC-Direct Drive 3/4 H.P.
  • Power: 115 VAC 60Hz 10.2 Amps
  • Shipping Weight: 680 lbs.
  • Optional Filters:
    24" x 24" x 4" Aluminum Mesh Pre-filter Washable and Reusable - Replaces Pleated
    24" x 24" x 22" 95% 8 Pocket Bag Filter Replaces 65% Bag Filter

Case Study

kitchen

Kitchen Exhaust Removal

We were able to hang two OX1100-CC units in the kitchen area. One in the front of the kitchen (above the serving area) and one in the hallway behind the kitchen exit door. By hanging them on chains through ceiling tile, they were able to achieve the inconspicuous look they wanted. The OX1100-CC has 18lbs of carbon filtration, which is a lot of carbon to tackle the removal of odors. While cooking/serving, the units are quiet enough that they go unnoticed during operation.
